Multi-Year-on-Year Example
This Jupyter notebook follows on from the existing TrendAnalysis_example.ipynb and assumes familiarity with that example. This example investigates two additional pieces of functionality introduced in RdTools 3.2.0: multi-year-on-year analysis, and changing the right- or left-labeling of YoY outputs in the rdtools.degradation.degradation_year_on_year function.
The calculations consist of:
Import and preliminary calculations: In this step data is imported and augmented to enable analysis with RdTools. No RdTools functions are used in this step. It will vary depending on the particulars of your dataset.
Analysis with RdTools: This notebook illustrates the use of the TrendAnalysis API with two new features:
label='center'andmulti_yoy=True. Because we are implementing this with therdtools.TrendAnalysisobject-oriented API, it requires passing kwargs todegradation_year_on_yearas a dictionary in theTrendAnalysis.sensor_analysis(yoy_kwargs={})input.
For a consistent experience, we recommend installing the packages and versions documented in docs/notebook_requirements.txt. This can be achieved in your environment by running pip install -r docs/notebook_requirements.txt from the base directory. (RdTools must also be separately installed.) This notebook was tested in python 3.12.
This notebook works with data from the NREL PVDAQ [4] NREL x-Si #1 system. This notebook automatically downloads and locally caches the dataset used in this example. The data can also be found on the DuraMAT Datahub (https://datahub.duramat.org/dataset/pvdaq-time-series-with-soiling-signal).
[1]:
import pandas as pd
import matplotlib.pyplot as plt
import numpy as np
import pvlib
import rdtools
%matplotlib inline
[2]:
#Update the style of plots
import matplotlib
matplotlib.rcParams.update({'font.size': 12,
'figure.figsize': [4.5, 3],
'lines.markeredgewidth': 0,
'lines.markersize': 2
})
# Register time series plotting in pandas > 1.0
from pandas.plotting import register_matplotlib_converters
register_matplotlib_converters()
[3]:
# Set the random seed for numpy to ensure consistent results
np.random.seed(0)
Import and preliminary calculations
This section prepares the data necessary for an rdtools.TrendAnalysis calculation.
A common challenge is handling datasets with and without daylight savings time. Make sure to specify a pytz timezone that does or does not include daylight savings time as appropriate for your dataset.
The steps of this section may change depending on your data source or the system being considered. Note that nothing in this first section utilizes the ``rdtools`` library. Transposition of irradiance and modeling of cell temperature are generally outside the scope of rdtools. A variety of tools for these calculations are available in pvlib.
[4]:
# Import the example data
file_url = ('https://datahub.duramat.org/dataset/'
'a49bb656-7b36-437a-8089-1870a40c2a7d/'
'resource/d2c3fcf4-4f5f-47ad-8743-fc29'
'f1356835/download/pvdaq_system_4_2010'
'-2016_subset_soil_signal.csv')
cache_file = 'PVDAQ_system_4_2010-2016_subset_soilsignal.pickle'
try:
df = pd.read_pickle(cache_file)
except FileNotFoundError:
df = pd.read_csv(file_url, index_col=0, parse_dates=True)
df.to_pickle(cache_file)
[5]:
df = df.rename(columns = {
'ac_power':'power_ac',
'wind_speed': 'wind_speed',
'ambient_temp': 'Tamb',
'poa_irradiance': 'poa',
})
# Specify the Metadata
meta = {"latitude": 39.7406,
"longitude": -105.1774,
"timezone": 'Etc/GMT+7',
"gamma_pdc": -0.0034, # Temperature coefficient for modern silicon PV modules (1/K)
"azimuth": 180,
"tilt": 40,
"power_dc_rated": 1000.0,
"temp_model_params":'open_rack_glass_polymer'}
df.index = df.index.tz_localize(meta['timezone'])
# Set the pvlib location
loc = pvlib.location.Location(meta['latitude'], meta['longitude'], tz = meta['timezone'])
# There is some missing data, but we can infer the frequency from
# the first several data points
freq = pd.infer_freq(df.index[:10])
Note: Unlike the original notebook, we are not incorporating soiling into this analysis and are focusing on year-on-year degradation
Use of the object oriented system analysis API
The first step is to create a TrendAnalysis instance containing data to be analyzed and information about the system. The new functionality is accessed in a following step when calling the sensor_analysis() method.
[6]:
ta = rdtools.TrendAnalysis(df['power_ac'], df['poa'],
temperature_ambient=df['Tamb'],
gamma_pdc=meta['gamma_pdc'],
interp_freq=freq,
windspeed=df['wind_speed'],
power_dc_rated=meta['power_dc_rated'],
temperature_model=meta['temp_model_params'])
Once the TrendAnalysis object is ready, the sensor_analysis() method can be used to deploy the full chain of analysis steps. Results are stored in a nested dict, TrendAnalysis.results.
New in RdTools 3.2, there are two new arguments in rdtools.degradation_year_on_year(): label='center' (or ‘left’) and multi_yoy=True. To pass these arguments into the TrendAnalysis object, they are passed as a dictionary in the TrendAnalysis.sensor_analysis(yoy_kwargs={}) input.
The first new argument changes the label index of the year-on-year degradation output. By default this index is right-labeled. For instance, if we have calculated a slope between ‘2021-01-01’ and ‘2022-01-01’, this slope value is labeled with the right index of ‘2022-01-01’. By passing label='center', the output will be labeled as ‘2021-07-02’ instead, which is the midpoint of the 365-day period.
[7]:
ta.sensor_analysis(analyses=['yoy_degradation'], yoy_kwargs={'label': 'center'})
The results of the calculations are stored in a nested dict, TrendAnalysis.results. New keys are stored in the calc_info dictionary: YoY_times provides the left, right, and center label for each calculated slope. This provides important context for the next step, which is multi-YoY calculation.
[8]:
# Print the YoY slopes. Timestamps are center-labeled because we passed label='center' in the yoy_kwargs.
calc_info = ta.results['sensor']['yoy_degradation']['calc_info']
print(calc_info['YoY_values'].head().to_markdown())
| dt | yoy |
|:--------------------------|--------:|
| 2010-08-27 12:00:00-07:00 | 31.7242 |
| 2010-08-28 12:00:00-07:00 | 21.4746 |
| 2010-08-29 12:00:00-07:00 | 20.9898 |
| 2010-08-30 12:00:00-07:00 | 25.8811 |
| 2010-09-01 12:00:00-07:00 | 21.3218 |
[9]:
# Provide additional timestamp information for the YoY slopes including the left and right timestamps that were used to calculate the slope.
# The index is set to equal dt_center because we passed label='center' in the yoy_kwargs.
print(calc_info['YoY_times'].head().to_markdown())
| dt | dt_right | dt_center | dt_left |
|:--------------------------|:--------------------------|:--------------------------|:--------------------------|
| 2010-08-27 12:00:00-07:00 | 2011-02-26 00:00:00-07:00 | 2010-08-27 12:00:00-07:00 | 2010-02-26 00:00:00-07:00 |
| 2010-08-28 12:00:00-07:00 | 2011-02-27 00:00:00-07:00 | 2010-08-28 12:00:00-07:00 | 2010-02-27 00:00:00-07:00 |
| 2010-08-29 12:00:00-07:00 | 2011-02-28 00:00:00-07:00 | 2010-08-29 12:00:00-07:00 | 2010-02-28 00:00:00-07:00 |
| 2010-08-30 12:00:00-07:00 | 2011-03-01 00:00:00-07:00 | 2010-08-30 12:00:00-07:00 | 2010-03-01 00:00:00-07:00 |
| 2010-09-01 12:00:00-07:00 | 2011-03-03 00:00:00-07:00 | 2010-09-01 12:00:00-07:00 | 2010-03-03 00:00:00-07:00 |
[10]:

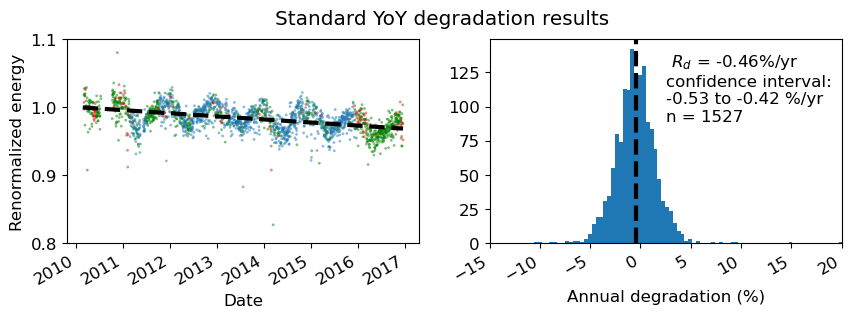

# plot the standard YoY degradation plot to compare with the multi-YoY plot later
ta.plot_degradation_summary('sensor', summary_title='Standard YoY degradation results',
scatter_ymin=0.8, scatter_ymax=1.1, detailed=True,
hist_xmin=-15, hist_xmax=20, bins=500)
plt.show()
In the above plot with detailed=True, note that points in red are not included in the analysis because there is no matching start or endpoint 365 days away. Points in green are used only once, either as a start-point or end-point, but not both.
[11]:

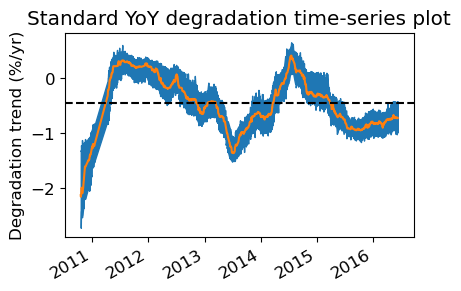

# plot the standard YoY time-series plot to compare with the multi-YoY plot later
ta.plot_degradation_timeseries(case='sensor')
plt.title('Standard YoY degradation time-series plot')
plt.show()
Multi-YoY analysis
By passing multi_yoy=True instead of the default False, we now trigger multi-YoY slope measurements. This follows the method of Quest et al., 2023.1 Instead of the standard year-on-year slopes where each slope is calculated over points separated by 365 days, the multi-year-on-year approach includes multiple slopes where points can be separated by N × 365 days where N is an integer from 1 to the length of the dataset in years. Continuing our above example, if our dataset extends from 2020
to 2024, slopes beginning on ‘2020-01-01’ will include slopes calculated to the following endpoints: ‘2021-01-01’, ‘2022-01-01’, ‘2023-01-01’, and ‘2024-01-01’. Slopes are still calculated in equivalent units of % / year, but now multiple values will occupy the same index.
1H. Quest, C. Ballif, A. Virtuani, “Multi‐Annual Year‐on‐Year: Minimising the Uncertainty in Photovoltaic System Performance Loss Rates,” Progress in Photovoltaics: Research and Applications, vol. 33, no. 3, pp. 411-424, Oct. 2024. doi: 10.1002/pip.3855
[12]:
ta.sensor_analysis(analyses=['yoy_degradation'], yoy_kwargs={'label': 'center', 'multi_yoy': True})
[13]:
calc_info_multi = ta.results['sensor']['yoy_degradation']['calc_info']
[14]:
# plot the multi-YoY degradation plot to compare with the multi-YoY plot later

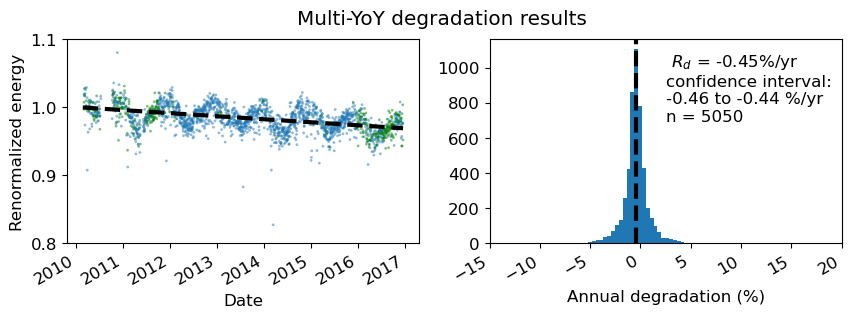

ta.plot_degradation_summary('sensor', summary_title='Multi-YoY degradation results',
scatter_ymin=0.8, scatter_ymax=1.1, detailed=True,
hist_xmin=-15, hist_xmax=20, bins=500)
plt.show()
print(f'Multi-YoY number of slopes: {calc_info_multi["YoY_values"].__len__()}')
print(f'Standard method number of slopes: {calc_info["YoY_values"].__len__()}')
Multi-YoY number of slopes: 5050
Standard method number of slopes: 1527
In the multi-YoY approach, we generate a larger number of slopes and datapoints from the same dataset. Note that n=5050 instead of n=1527 from the conventional approach. This tightens our confidence interval for overall degradation assessment.
Also, with detailed=True showing which points are included in the analysis, none of the datapoints are red, indicating that even if there is a data outage one year removed from the point, there is some other datapoint within an integer number N × years to be included in the distribution.
Next we look at the time-dependent degradation plot, which will average the multi-year slopes if multi_yoy=True.
[15]:
# Plot the multi-YoY time-series plot. This will result in a warning because there are multiple YoY slopes for each timestamp.
# The method will automatically average all datapoints sharing a timestamp. The result is a more filtered annual trend.
# Note that the choice of label='center' vs 'left' or 'right' will affect the timestamps that are averaged together and hence
# will change the appearance of the multi-YoY time-series plot.
ta.plot_degradation_timeseries(case='sensor')
plt.title('Multi-YoY degradation time-series plot')
plt.show()
C:\Users\cdeline\Documents\Python Scripts\rdtools_dev\rdtools\plotting.py:495: UserWarning: Input `yoy_info['YoY_values']` appears to have multiple annual slopes per day, which is the case if degradation_year_on_year(multi_yoy=True). Proceeding to plot with a daily mean which will average out the time-series trend. Recommend re-running with degradation_year_on_year(multi_yoy=False).
warnings.warn(
Further illustration
To further illustrate the details of multi-YoY operation, and how using center vs right labeling changes the process, we consider the below multi-YoY example. In the first case, we look at five slopes, each of which end at the same right-labeled datapoint in 2015. These consist of 1,2,3,4 and 5-year segment lengths.
Alternatively, if we use the center labeling, a similar timestamp in 2013 will also include five slopes, each of which has a midpoint of the segment coinciding with the same timestamp.
